Precision slewing bearing

current location:首页 >> Products >> Precision slewing bearing
Product Overview:

According to the structure of rolling body, the precision turntable bearing is divided into two series: cross roller turntable bearing and four-point contact ball turntable bearing. According to the form of gear, it can be divided into three types: without gear ring, with inner gear and with outer gear. It can be installed with seal, equipped with oil cup, adjusted the clearance torque in a small range, and the accuracy can reach P5/P4/P2 to meet the requirements of various types of working conditions.

Our company supports the non-standard design and processing of various types of high-precision bearings within the range of outer diameter of 20mm to 2000mm, and cooperates with many colleges and universities, machine tool companies, machinery research institutes and scientific research institutions all year round to carry out the joint development of major equipment, and assist customers in sample and batch production.

The turntable bearing can bear large radial load, axial load, overturning moment and other comprehensive loads at the same time. It integrates multiple functions such as support, rotation, transmission and fixation, and has compact structure, simple installation and convenient maintenance. It is usually used in heavy and low speed situations, such as lifting machinery, excavators, turntables, wind turbines, astronomical telescopes, tank turrets and other devices, and is widely used.

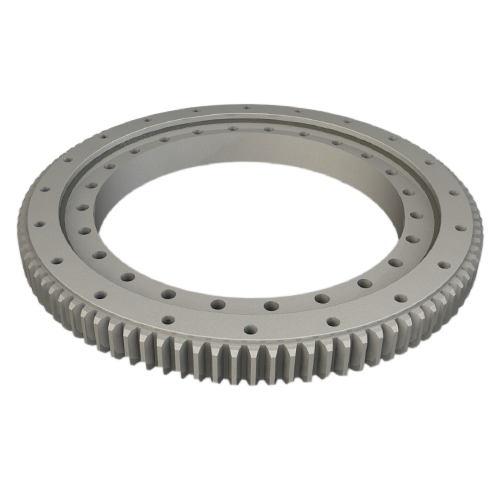

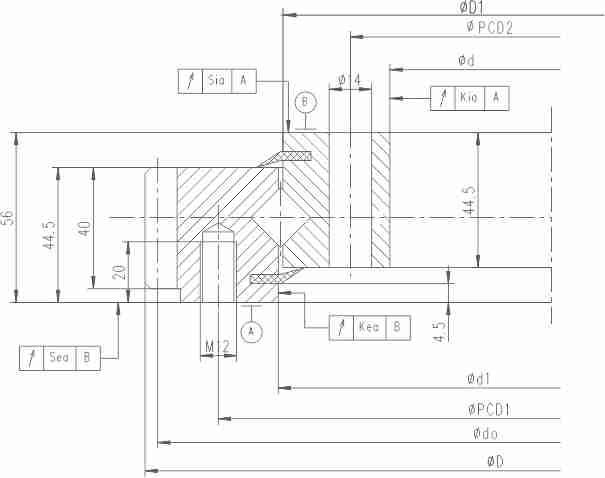

Crossed roller slewing bearing with external gear teeth (HXSA series)


ModelMain   dimensionsRotation   accuracyInstallation   dimensionBasic   Rated Load
P5Outer RingInner RingAxialRadial
DdHdoMZKeaKiaSeaSiaPitch Center DistanceMounting HolePitch Center DistanceMounting HoleDynamicStaticDynamicStatic
HXSA140414503.3344564955990.060.060.040.0445520-M12 with 20 depth36824-φ14229520146250
HXSA140544640.34745663061050.070.060.040.0458528-M12 with 20 depth49832-φ14270680170330
HXSA140644742.35745673261220.080.070.050.0568532-M12 with 20 depth59836-φ14290800185395
HXSA140744838.16745682661380.080.080.050.0578536-M12 with 20 depth69840-φ14315930200445
HXSA140844950.17745693681170.090.080.050.0588536-M12 with 20 depth79840-φ143401050215510
HXSA1409441046.187456103281290.090.090.060.0698540-M12 with 20 depth89844-φ143601170227580
HXSA1410941198.1102456118481480.110.110.070.07113544-M12 with 20 depth104848-φ143901360246670




Welcome to leave a message for more information!
