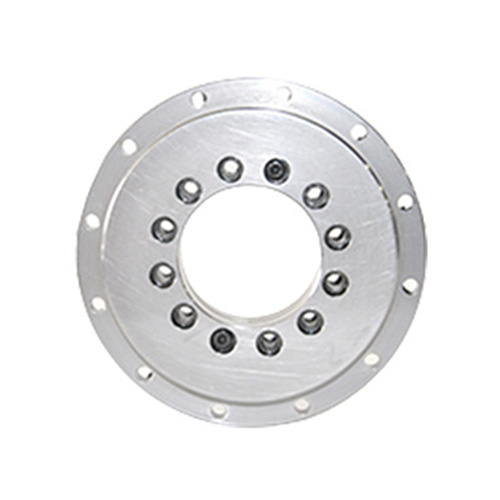

YRTGS High Speed Series

Time：23-03-23

PV：20

Consultation Details

Product Overview：

YRTGS high speed series outer structure is the same as YRTG series. The special inner structure makes YRTGS series higher limiting speed, and the friction torque is lower and uniformly spread. So for YRTG series application which need lower friction torque but higher speed, this bearing series can be chosen. For example, bearing used for shaft which driven by direct drive motor.



Model	Dimension									Fixing hole						Joint screw QTY	Lifting hole		Pitch1）t	Screw tightening torque	Basic load rating				Limiting speed5）	Mass
	Dimension									Fixing hole											Axial		Radial
	d	D	H	H1	H2	C	d1	dn	dm	Inner ring				Outer ring							Dynamic	Static	Dynamic	Static
	Unit：mm									do	ds	Ts	QTY4)	dL	QTY4)					MA^2）	Ca	Coa	Cr	Cor	Grease
	Unit：mm									mm			QTY4)	mm	QTY4)		G	QTY	QTY*t	N m	KN				r/min	≈Kg
YRTGS200	200	300	45	30	15	15	274	215	285	7	11	6.2	46	7	45	2	M8	3	48*7.5°	14	105	635	78	202	950	9.7
YRTGS260	260	385	55	36.5	18.5	18	345	280	365	9.3	15	8.2	34	9.3	33	2	M12	3	36*10°	34	131	840	85	275	800	18.3
YRTGS325	325	450	60	40	20	20	415	342	430	9.3	15	8.2	34	9.3	33	2	M13	3	36*10°	34	191	1260	108	300	680	25
YRTGS395	395	525	65	42.5	22.5	20	486	415	505	9.3	15	8.2	46	9.3	45	2	M14	3	48*7.5°	34	214	1540	121	390	600	33
YRTGS460	460	600	70	46	24	22	560	482	580	9.3	15	8.2	46	9.3	45	2	M15	3	48*7.5°	34	221	1690	168	570	500	45
