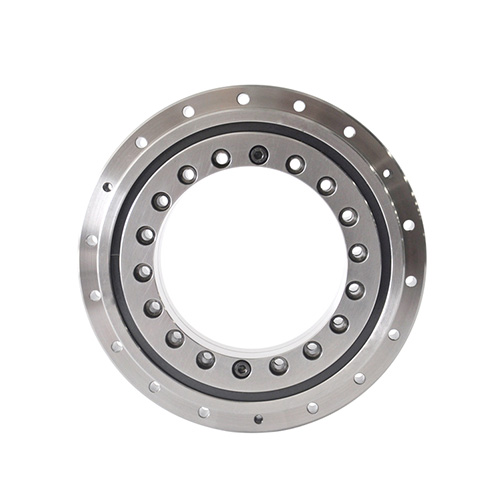

ZKLDF-B Thrust Angular Contact Ball Series

Time：23-03-23

PV：19

Consultation Details

Product Overview：

ZKLDF-B axial angular contact ball bearings series, also can bear combined load, with high speed and low friction torque, at the same time it can ensure high rotary precision. ZKLDF-B bearings can be applied to high speed rotary worktable, milling, grinding, honing head and precision measuring instruments.



Model	Dimension										Fixing hole					Joint screwQTY	Lifting hole		Pitch1）t	Screw tightening torque	Basic load rating		Limiting speed4）	Bearing friction torque	Mass
	Dimension										Fixing hole										Axial
	d	D	H	H1	D1	D2	D3	J	J1	a	Inner ring			Outer ring							Dynamic	Static
	Unit：mm										d1	d2	QTY3)	d3	QTY3)					MA2）	Ca	Coa	Grease
	Unit：mm										mm		QTY3)	mm	QTY3)		G	QTY	QTY*t	N m	KN		r/min	Nm	≈Kg
ZKLDF100	100	185	38	25	160	136	158	112	170	5.4	5.6	10	16	5.6	15	2	M8	3	18*20°	8.5	67	251	2800	1.6	4.5
ZKLDF120	120	210	40	26	184	159	181	135	195	6.2	7	11	22	7	21	2	M8	3	24*15°	14	72	315	2400	2	6
ZKLDF150	150	240	40	26	214	188	211	165	225	6.2	7	11	34	7	33	2	M8	3	36*10°	14	76	365	2000	3	7.5
ZKLDF200	200	300	45	30	274	243	271	215	285	6.2	7	11	46	7	45	2	M12	3	48*7.5°	14	112	550	1600	4.5	11
ZKLDF260	260	385	55	36.5	345	313	348	280	365	8.2	9.3	15	34	9.3	33	2	M12	3	36*10°	34	155	920	1200	7.5	22
ZKLDF325	325	450	60	40	415	380	413	342	430	8.2	9.3	15	34	9.3	33	2	M12	3	36*10°	34	165	110	1000	11	28
ZKLDF395	395	525	65	42.5	486	450	488	415	505	8.2	9.3	15	46	9.3	45	2	M12	3	48*7.5°	34	214	1470	800	16	39
ZKLDF460	460	600	70	46	560	520	563	482	580	8.2	9.3	15	46	9.3	45	2	M12	3	48*7.5°	34	255	1860	700	21	50
ZKLDF580	580	750	90	60	702	656	700	610	720	11	11.4	18	45	11.4	42	2	M12	3	48*7.5°	68	395	3180	500	40	82

Welcome to leave a message for more information!
