Product Overview:

According to the structure of rolling body, the precision turntable bearing is divided into two series: cross roller turntable bearing and four-point contact ball turntable bearing. According to the form of gear, it can be divided into three types: without gear ring, with inner gear and with outer gear. It can be installed with seal, equipped with oil cup, adjusted the clearance torque in a small range, and the accuracy can reach P5/P4/P2 to meet the requirements of various types of working conditions.

Our company supports the non-standard design and processing of various types of high-precision bearings within the range of outer diameter of 20mm to 2000mm, and cooperates with many colleges and universities, machine tool companies, machinery research institutes and scientific research institutions all year round to carry out the joint development of major equipment, and assist customers in sample and batch production.

The turntable bearing can bear large radial load, axial load, overturning moment and other comprehensive loads at the same time. It integrates multiple functions such as support, rotation, transmission and fixation, and has compact structure, simple installation and convenient maintenance. It is usually used in heavy and low speed situations, such as lifting machinery, excavators, turntables, wind turbines, astronomical telescopes, tank turrets and other devices, and is widely used.

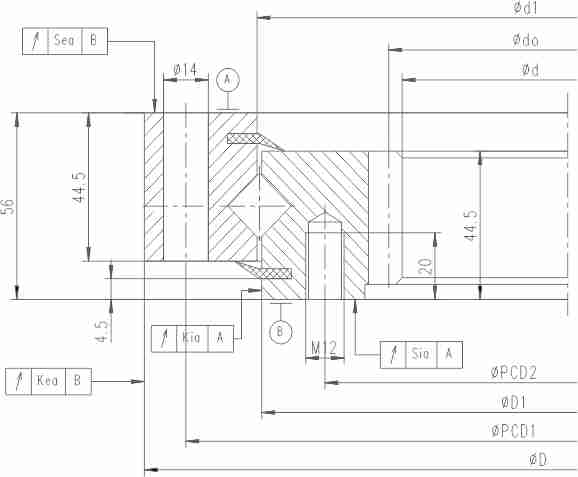

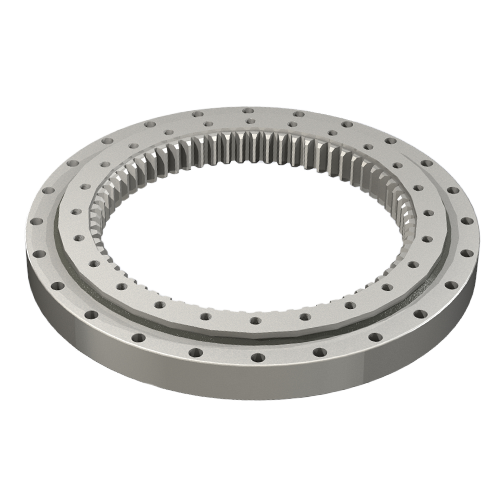

Crossed roller slewing bearing with internal gear teeth(HXSI series)


ModelMain   dimensionsRotation   accuracyInstallation   dimensionBasic   Rated Load
P5Outer RingInner RingAxialRadial
DdHdoMZKeaKiaSeaSiaPitch Center DistanceMounting HolePitch Center DistanceMounting HoleDynamicStaticDynamicStatic
HXSI140414484325563355670.φ1437524-M12 with 20 depth229520146250
HXSI140544614444564566760.φ1450532-M12 with 20 depth270680170330
HXSI140644714546565586930.φ1460536-M12 with 20 depth290800185395
HXSI1407449143255666061100.φ1470540-M12 with 20 depth315930200455
HXSI140844914444567528940.φ1480540-M12 with 20 depth3401050215510
HXSI14094410145465685681070.φ1490544-M12 with 20 depth3601170227580
HXSI141094116432556100081250.φ14105548-M12 with 20 depth3901360246670

Welcome to leave a message for more information!
