Classify:Special Bearing for Robot Reducer
Time:23-03-23
PV:8

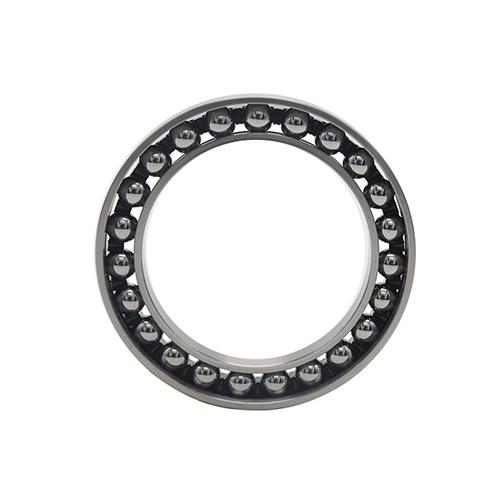

HYR flexible bearing mainly bears alternating stress. Due to its thin wall thickness, it is deformed when it is matched with cam. High carbon chromium bearing steel is used for inner and outer rings and rolling elements, and nylon integral retainer is used for retainer.

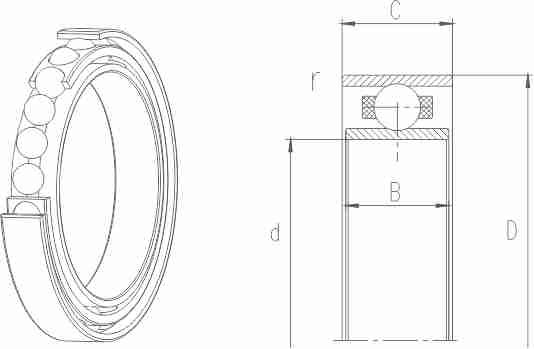

Model | MeasureSpecification(mm) | Rating value | ||||||
d | D | B | C | r | Maximum Radial deformation (mm) | Input speed (r/min) | Output value (N.m) | |
HYR-14 | 25.07 | 33.896 | 6.35 | 6.095 | 0.3 | 0.8 | 3000 | 6 |
HYR-17 | 30.3 | 41.722 | 6.68 | 6.16 | 0.3 | 0.9 | 3000 | 16 |
HYR-20 | 35.56 | 49.068 | 8.13 | 7.24 | 0.3 | 1 | 3000 | 30 |
HYR-25 | 45.212 | 61.334 | 6.3 | 9.015 | 0.3 | 1 | 3000 | 50 |
HYR-32 | 58.928 | 79.748 | 8.64 | 11.81 | 0.3 | 1.2 | 3000 | 90 |
HYR-40 | 71.12 | 98.171 | 10.29 | 14.475 | 0.6 | 1.5 | 3000 | 200 |
HYR-50 | 88.9 | 122.707 | 12.7 | 18.085 | 1 | 2 | 3000 | 450 |
HYR-65 | 117.856 | 159.312 | 15.88 | 23.495 | 1 | 2 | 3000 | 1000 |
