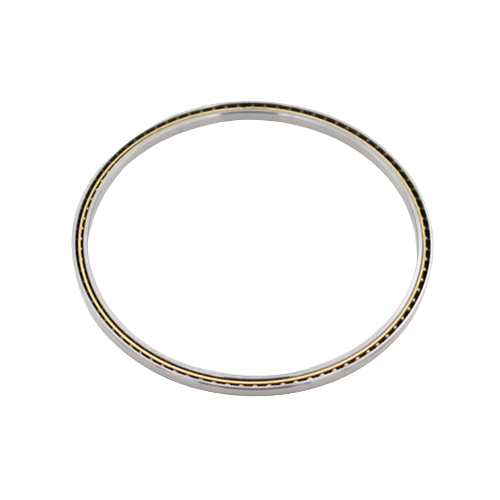

Metric Size Chart of Thin Section Four- point Contact Ball Bearing

Time：23-03-23

PV：20

Consultation Details

Product Overview：

The difference between X-type four-point angular contact ball bearings and A/C-type bearings lies in the shape of their ball grooves. The deep groove depth and four-point contact structure enable the bearing to withstand radial and axial loads as well as torque loads, similar to the back-to-back combination of a pair of A-type bearings.


8mm series X type four-point contact ball bearing

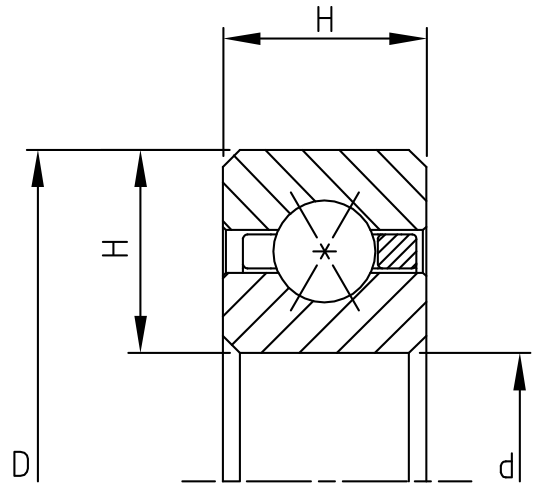

Model	Main dimensions（mm）			Basic Rated Load（KN）
Model	d	D	H	Radial static	Radial dynamic	Axial static	Axial dynamic	Moment static load	Moment dynamic load
HX2508 HX2508UU	25	41	8	3.27	3.24	7.43	4.60	0.48	0.39
HX5008 HX5008UU	50	66	8	5.44	4.51	13.61	6.53	1.55	0.96
HX6008 HX6008UU	60	76	8	6.43	4.96	16.08	7.30	2.15	1.24
HX7008 HX7008UU	70	86	8	7.42	5.38	18.56	8.03	2.84	1.55
HX8008 HX8008UU	80	96	8	8.42	5.79	21.03	8.72	3.63	1.87
HX9008 HX9008UU	90	106	8	9.40	6.18	23.51	9.40	4.52	2.23
HX10008 HX10008UU	100	116	8	10.39	6.57	25.98	10.05	5.51	2.61
HX11008 HX11008UU	110	126	8	11.39	6.93	28.45	10.68	6.59	3.01
HX12008 HX12008UU	120	136	8	12.37	7.28	30.93	11.29	7.76	3.43
HX13008 HX13008UU	130	146	8	13.36	7.62	30.93	11.88	9.05	3.87
HX14008 HX14008UU	140	156	8	14.36	7.96	35.88	12.46	10.42	4.33
HX15008 HX15008UU	150	166	8	15.34	8.29	38.36	13.02	11.89	4.82
HX16008 HX16008UU	160	176	8	16.33	8.60	40.83	13.58	13.46	5.32
HX17008 HX17008UU	170	186	8	17.32	8.92	43.30	14.12	15.12	5.84
HX18008	180	196	8	18.31	9.22	45.78	14.65	16.88	6.38
HX19008	190	206	8	19.05	9.44	47.63	15.05	18.50	6.87
HX20008	200	216	8	20.04	9.72	50.11	15.56	20.44	7.44
HX25008	250	266	8	24.99	11.10	62.48	18.03	31.61	10.54
HX30008	300	266	8	29.94	12.36	74.85	20.34	45.22	14.00
HX32008	320	336	8	31.92	12.84	79.80	21.23	51.33	15.48
HX34008	340	356	8	33.90	13.23	84.75	22.10	57.42	16.93
HX36008	360	376	8	35.63	13.68	89.07	22.83	64.30	18.52

13mm series X type four-point contact ball bearing
Model	Main dimensions（mm）			Basic Rated Load（KN）
Model	d	D	H	Radial static	Radial dynamic	Axial static	Axial dynamic	Moment static load	Moment dynamic load
HX2513	25	51	13	6.82	6.75	12.67	8.52	0.94	0.94
HX5013	50	76	13	9.01	8.92	22.18	12.01	2.74	2.07
HX6013	60	86	13	10.77	9.94	26.92	14.07	3.85	2.67
HX7013	70	96	13	12.03	10.53	30.09	15.16	4.90	3.21
HX8013	80	106	13	13.31	11.10	33.25	16.20	6.07	3.80
HX9013	90	116	13	15.20	12.00	38.00	17.72	7.68	4.55
HX10013	100	126	13	16.47	12.53	41.17	18.68	9.12	5.21
HX11013	110	136	13	18.38	13.37	45.92	20.09	11.08	6.05
HX12013	120	146	13	19.66	13.87	49.10	21.01	12.81	6.79
HX13013	130	156	13	20.90	14.37	52.26	21.90	14.66	7.56
HX14013	140	166	13	22.80	15.13	57.01	23.21	17.11	8.52
HX15013	150	176	13	24.07	15.60	60.18	24.06	19.24	9.35
HX16013	160	186	13	25.34	16.06	63.35	24.90	21.49	10.22
HX17013	170	196	13	27.24	16.77	68.10	26.13	24.44	11.29
HX18013	180	206	13	28.51	17.21	71.27	26.93	26.98	12.22
HX19013	190	216	13	29.77	17.64	74.43	27.72	29.64	13.17
HX20013	200	226	13	31.67	18.31	79.18	28.89	33.08	14.35
HX25013	250	276	13	39.28	20.77	98.19	3.33	3 5168	20.09
HX30013	300	326	13	46.25	22.80	115.60	3.71	4 7242	26.26
HX32013	320	346	13	49.41	23.71	123.53	3.88	6 8232	29.04
HX34013	340	366	13	52.58	24.58	131.44	4.05	3 9286	31.92
HX36013	360	386	13	55.74	25.42	139.36	4.20	7941.95	34.89

20mm series X type four-point contact ball bearing
Model	Main dimensions（mm）			Basic Rated Load（KN）
Model	d	D	H	Radial static	Radial dynamic	Axial static	Axial dynamic	Moment static load	Moment dynamic load
HX2520	25	65	20	14.88	14.73	24.94	17.53	2.21	2.21
HX5020	50	90	20	18.08	17.90	39.19	23.70	5.38	4.61
HX6020	60	100	20	18.68	18.49	42.76	25.11	6.71	5.45
HX7020	70	110	20	20.30	20.09	49.88	27.82	8.81	6.65
HX8020	80	120	20	21.37	20.69	53.45	29.14	10.49	7.61
HX9020	90	130	20	24.24	22.18	60.57	31.66	13.07	8.98
HX10020	100	140	20	25.66	22.77	64.14	32.90	15.09	10.05
HX11020	110	150	20	28.51	24.17	71.27	35.29	18.17	11.55
HX12020	120	160	20	31.36	25.51	78.39	37.60	21.52	13.14
HX13020	130	170	20	32.78	26.07	81.96	38.74	24.11	14.39
HX14020	140	180	20	35.63	27.35	89.08	40.95	27.95	16.10
HX15020	150	190	20	37.05	27.88	92.64	42.04	30.89	17.43
HX16020	160	200	20	39.91	29.11	99.76	44.17	35.22	19.28
HX17020	170	210	20	42.76	29.63	106.89	46.25	38.50	20.71
HX18020	180	220	20	44.18	30.80	110.46	47.27	43.33	22.66
HX19020	190	230	20	47.04	31.95	117.59	49.28	48.43	24.69
HX20020	200	240	20	48.46	32.43	121.15	50.27	52.27	26.24
HX25020	250	290	20	59.86	36.56	149.66	57.88	79.25	36.32
HX30020	300	340	20	71.27	40.37	178.15	65.00	111.82	47.52
HX32020	320	360	20	75.54	41.70	188.85	67.59	125.93	52.17
HX34020	340	380	20	79.81	43.00	199.54	70.11	140.88	56.96
HX36020	360	400	20	84.09	44.28	210.23	72.60	156.68	61.90
