Metric Size Chart of Thin Section Deep Groove Ball Bearing

Time：23-03-23

PV：16

Consultation Details

Product Overview：

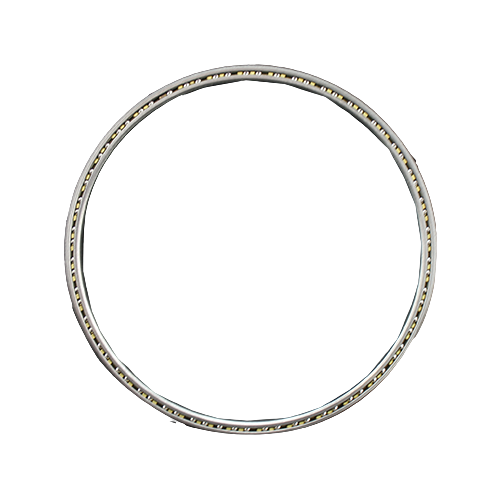

C-type deep groove ball bearing is a single row deep groove ball bearing with super deep groove (raceway groove depth = 25% of the ball diameter) in the inner and outer ring.


8mm Series (Sealless) C-type Deep Groove Ball Bearing

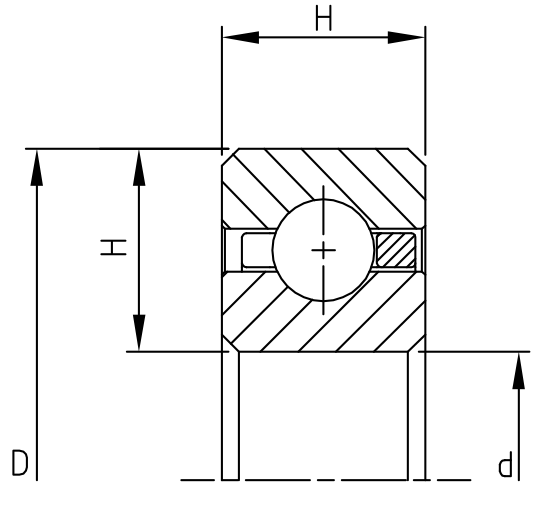

Model	Main dimensions（mm）			Basic Rated Load（KN）
Model	d	D	H	Radial static	Radial dynamic
HC2508 HC2508UU	25	41	8	2.97	2.50
HC5008 HC5008UU	50	66	8	5.45	3.43
HC6008 HC6008UU	60	76	8	6.43	3.76
HC7008 HC7008UU	70	86	8	7.43	4.09
HC8008 HC8008UU	80	96	8	8.42	4.39
HC9008 HC9008UU	90	106	8	9.40	4.68
HC10008 HC10008UU	100	116	8	10.40	4.97
HC11008 HC11008UU	110	126	8	11.39	5.23
HC12008 HC12008UU	120	136	8	12.37	5.50
HC13008 HC13008UU	130	146	8	13.37	5.76
HC14008 HC14008UU	140	156	8	14.36	6.01
HC15008 HC15008UU	150	166	8	15.34	6.25
HC16008 HC16008UU	160	176	8	16.33	6.49
HC17008 HC17008UU	170	186	8	17.32	6.72
HC18008	180	196	8	18.31	6.95
HC19008	190	206	8	19.05	7.11
HC20008	200	216	8	20.04	7.33
HC25008	250	266	8	24.99	8.36
HC30008	300	316	8	29.94	9.30
HC32008	320	336	8	31.92	9.65
HC34008	340	356	8	33.90	9.96
HC36008	360	376	8	35.63	10.29

13mm series C type deep groove ball bearing
Model	Main dimensions（mm）			Basic Rated Load（KN）
Model	d	D	H	Radial static	Radial dynamic
HC2513	25	51	13	5.07	5.24
HC5013	50	76	13	8.87	6.83
HC6013	60	86	13	10.77	7.60
HC7013	70	96	13	12.03	8.03
HC8013	80	106	13	13.31	8.45
HC9013	90	116	13	15.20	9.12
HC10013	100	126	13	16.47	9.52
HC11013	110	136	13	18.38	10.14
HC12013	120	146	13	19.64	10.52
HC13013	130	156	13	20.90	10.88
HC14013	140	166	13	22.80	11.46
HC15013	150	176	13	24.07	11.80
HC16013	160	186	13	25.34	12.14
HC17013	170	196	13	27.24	12.68
HC18013	180	206	13	28.51	13.00
HC19013	190	216	13	29.77	13.33
HC20013	200	226	13	31.67	13.83
HC25013	250	276	13	39.28	15.66
HC30013	300	326	13	46.25	17.19
HC32013	320	346	13	49.41	17.87
HC34013	340	366	13	52.58	18.51
HC36013	360	386	13	55.74	19.15

20mm series C type deep groove ball bearing
Model	Main dimensions（mm）			Basic Rated Load（KN）
Model	d	D	H	Radial static	Radial dynamic
HC2520	25	65	20	9.98	11.54
HC5020	50	90	20	15.68	13.82
HC6020	60	100	20	17.10	14.23
HC7020	70	110	20	19.95	15.42
HC8020	80	120	20	21.37	15.85
HC9020	90	130	20	24.24	16.95
HC10020	100	140	20	25.66	17.38
HC11020	110	150	20	28.51	18.42
HC12020	120	160	20	31.36	19.42
HC13020	130	170	20	32.78	19.83
HC14020	140	180	20	35.63	20.79
HC15020	150	190	20	37.05	21.18
HC16020	160	200	20	39.91	22.09
HC17020	170	210	20	42.76	22.47
HC18020	180	220	20	44.18	23.35
HC19020	190	230	20	47.04	24.21
HC20020	200	240	20	48.46	24.57
HC25020	250	290	20	59.86	27.65
HC30020	300	340	20	71.27	30.49
HC32020	320	360	20	75.54	31.49
HC34020	340	380	20	79.81	32.46
HC36020	360	400	20	84.09	33.40
